Description

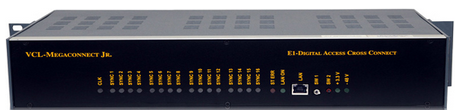

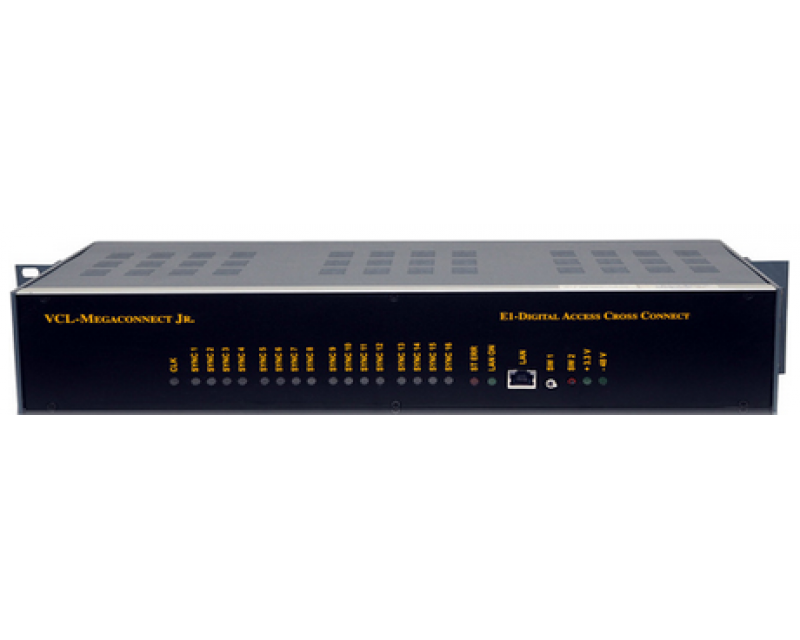

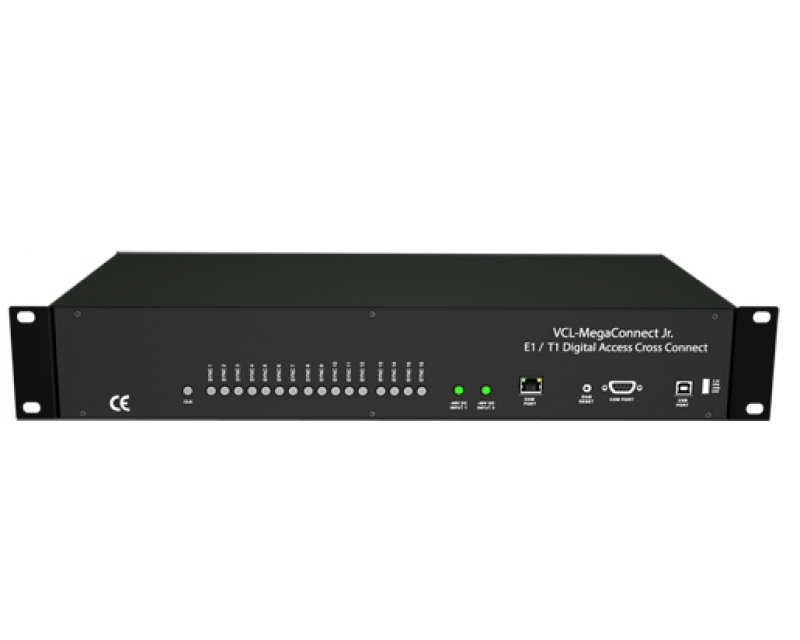

VCL-MegaConnect Jr., 16 Port E1/T1 mixed configuration DACS and interface converter shall allow the user to cross connect between E1 and T1 interfaces at DS-0 (64 Kbps timeslot) level and use it for interface, frame and line-code conversion between 8 E1 interfaces and 8 T1 interfaces.

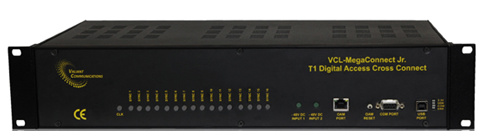

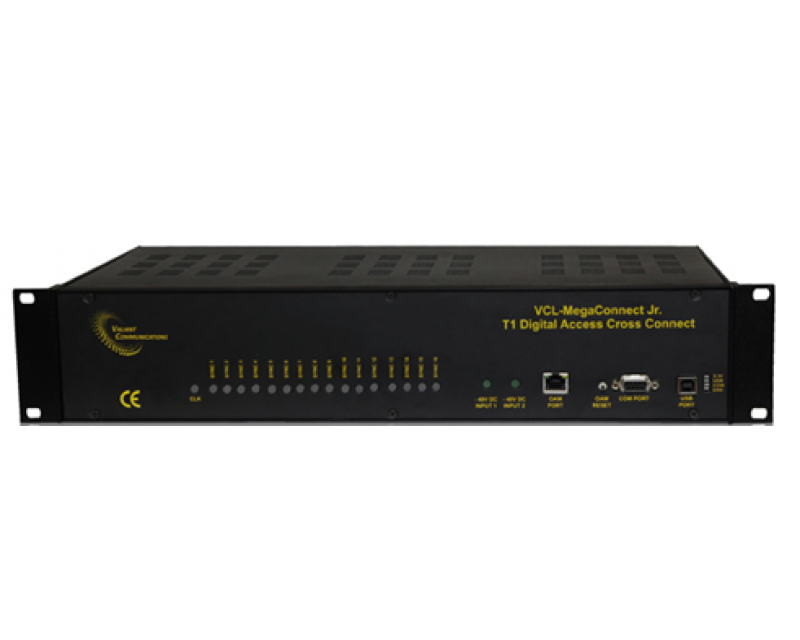

The VCL-MegaConnect Jr., 16 Port E1/T1 mixed configuration DACS and interface converter occupies only a 2U high rack-space and is a complete 19-inch stand-alone unit that provides connectivity of up to 16 E1/T1 Ports. The unit operates on a - 48V DC input power-supply (AC input adapter is optional).

The system is supplied with a CLI text-based, easy-to-use interface that offers the user complete control to prepare multiple configuration maps (and store them as data files) and the ease of downloading them from a PC. Dry contact relay alarms are also available at rear of the system to connect the system to an external alarm.

The VCL-MegaConnect Jr., 16 Port E1/T1 mixed configuration DACS and interface converter also has a TCP-IP Access feature which allows the DACS to be connected on a TCP-IP network (10/100 base interface) for remote access for configuration and monitoring.

Applications

ISP providing fractional E1/T1s to subscribers
Data aggregating fractional E1/T1 data circuits
Cellular extending fractional E1/T1 Ports fromMTSOto cell-sites
DS-0 (64 Kbps) time-slot cross connect between E1 and T1 Ports
Interface conversion (only interface, frame and line-code conversion) between E1 and T1 Ports.

Highlights

Stratum 3 clock
Remote TCP/IP access for configuration and monitoring
Text-based user-friendly CLI for easy configuration
Telnet remote access
Available in 16 E1/T1 Ports (8 E1 interfaces and 8 T1 interfaces) configuration
1+1 -48V DC Input Power Supply Redundancy (Dual Power Input allows the equipment to be powered from two separate -48V DC sources)
SNMP traps
Maintains Access Security Log
USB and RS232, interface for local connection through the serial interface to the "Network Control and Management Software”
User Selectable Internal, External and Loop-timed clock synchronization priority options
Local and remote loopback facility.

Features and Uses

Provides DS0, "n"x64Kbps and fractional aggregation between 8 E1 and 8 T1 Ports
Provides conversion between E1 and T1 interfaces
SNMPtraps
MaintainsAccess Security Log
USBand RS232, interface for local connection through the serial interface to the "Network Control and Management Software”
User Selectable Internal, External and Loop-timed clock synchronization priority options
Local and remote loopback facility
Stratum 3 clock
Remote TCP/IP access for configuration and monitoring
Text based user friendly CLI for easy configuration
Telnet remote access
Available in mixed 16 E1/T1 Ports (8 E1 interfaces and 8T1 interfaces) configuration
Allows cross connect between E1 and T1 interfaces at DS-0 (64Kbps) time-slot level.

Benefits

Reduce access costs by combining partially loaded E1/T1 s to a single E1/T1
Rear access wiring improves wiring and cable management
Support Nx64kbps fractional E1/T1 operation and grooming
Easy to install and simple to use.

System Access, Control and Management Options

Telnet
CLI Control Interface (HyperTerminal or VT100)
GUI (Graphical User Interface).

Applications

ISP providing fractional E1/T1s to subscribers
Data aggregating fractional E1/T1 data circuits
Cellular extending fractional E1/T1 Ports from MTSO to cell-sites
DS-0 (64 Kbps) time-slot cross connect between E1 and T1 Ports.
Interface conversion (only interface, frame and line-code conversion) between E1 and T1 Ports

E1 Interface

Available Time-Slots	1-31
Number of Ports	8
Conformity	G.703
PCMsampling rate	8000 samples/ sec
Encoding law	Alaw as per CCITT G.711
Bit rate	2048kbps ±50ppm
Code	HDB3
Nominal Impedance	120 Ohms balanced
Peak Voltage of a mark For 120 Ohms balanced interface	0V ± 0.3V
Nominal Pulse Width	244ns
Pulse Mask	As per CCITT rec. G.703

T1 Interface

Line Rate	T1 (1.544Mbps ± 50 bps)
Number of Ports	8
Available Time Slots	1 - 24
Framing Structure	As per ITU(CCITT) G.704
Framing Options	D4, ESF (Selectable)
Line Coding	AMI, B8ZS (Selectable)
Electrical	ITU-T G.703
Jitter	ITU-T G.823, ITU-T 1.431
Impedance	100 Ohms
Connectors	RJ-45 (Female)
