Description

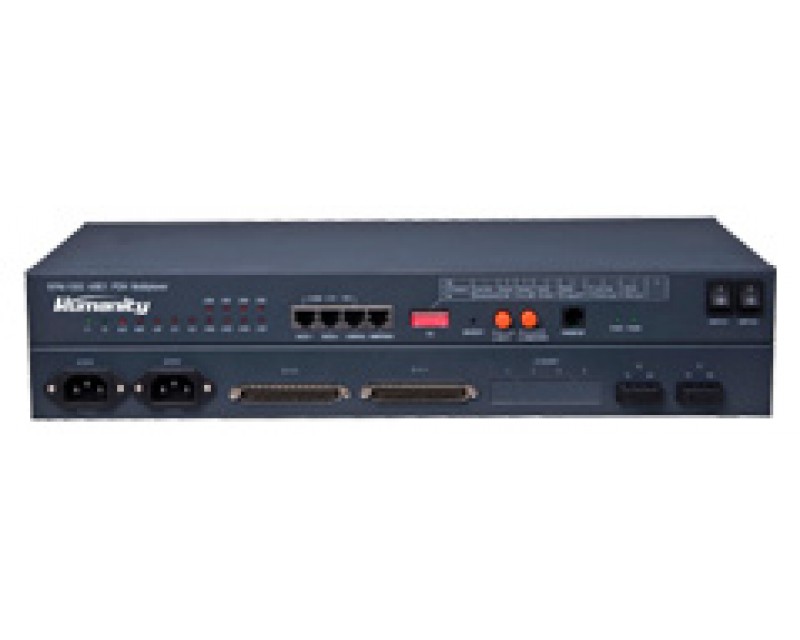

VCL-8 E1 plus Ethernet - Optical Multiplexer is a high performance optical line transmission equipment, combines 8, ITU-T G.703 compliant standard electrical E1s plus 100BaseT ethernet signal into an optical data stream for transport over fiber optic pairs. Several transmitter options for different cable types and wave-lengths are available. 1+1 optical path redundancy is offered and available as an option.,

The option of 1+1 Optical Redundancy (Protection Switching), the transmission automatically switches to a 'standby' optical link in the event of a failure of the 'primary' optical link..

Features and Highlights

Compact design (1U -44mm high) that performs E1 and Ethernet channel multiplexing & de-multiplexing to an optical output
Provides visible and audible alarm indication
Orderwire (EOW) channel for end to end installation and maintenance
Local and remote loop back test for diagnostics
1+1 Fiber Path protection
Clock options: internal/loop-timed
Provides visible and audible alarm indications
Local & remote loopback controls for diagnostics and troubleshooting
Local configuration management through RS232 Serial Port
Low power consumption (< 10 Watts)
Integrated E1 plus Ethernet - optical multiplexer
10/100M Ethernet port - 100Mbps Ethernet data transmission rate
Powered by grade Class I Laser
EMI/EMC complaint
8E1 interfaces
Power Input options: –48 VDC input, AC, AC+DC
E1 120 Ohms / 75 Ohms - options available
SNMP
Remote configuration and management through 10/100BaseT Ethernet Port - Telnet
Extensive alarms and status indication facility
Easy operation
Standard ITU-T compliant interfaces
Laser Shut Off facility

Maintenance and Management

Management Port (RS232) – COM Port
TCP/IP - 10/100 BaseT for remote management over a LAN / TCP/IP network
SNMP V2 (MIB File provided with the equipment)
Telnet - CLI (Command Line Interface)
Graphical User Interface (GUI)
Network Management System (to monitor multiple units from a single central location).

Power Supply Options
