Loop-O9100 ADM/TM

The Loop-O9100 ADM/TM is an economic, compact STM1 ADM & TM Multiplexer designed to add and drop up to the following:

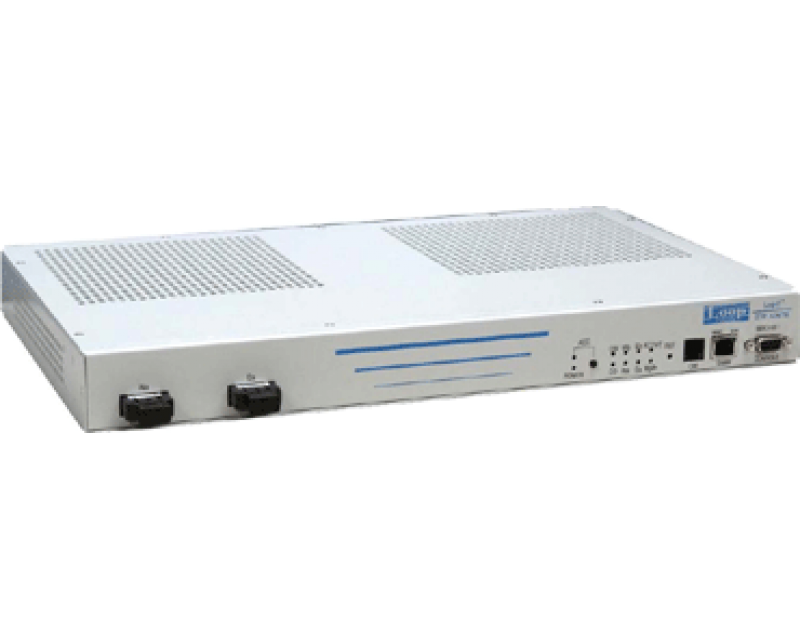

For 1U shelf

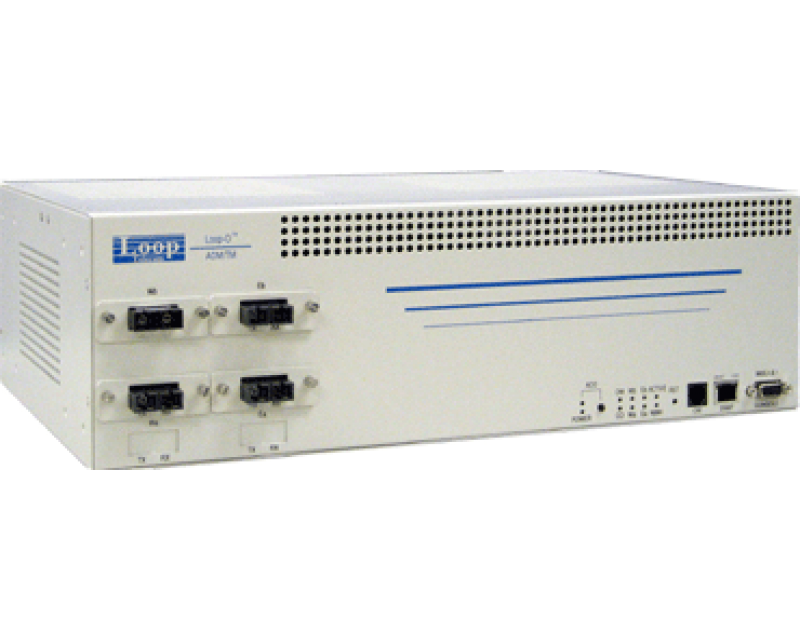

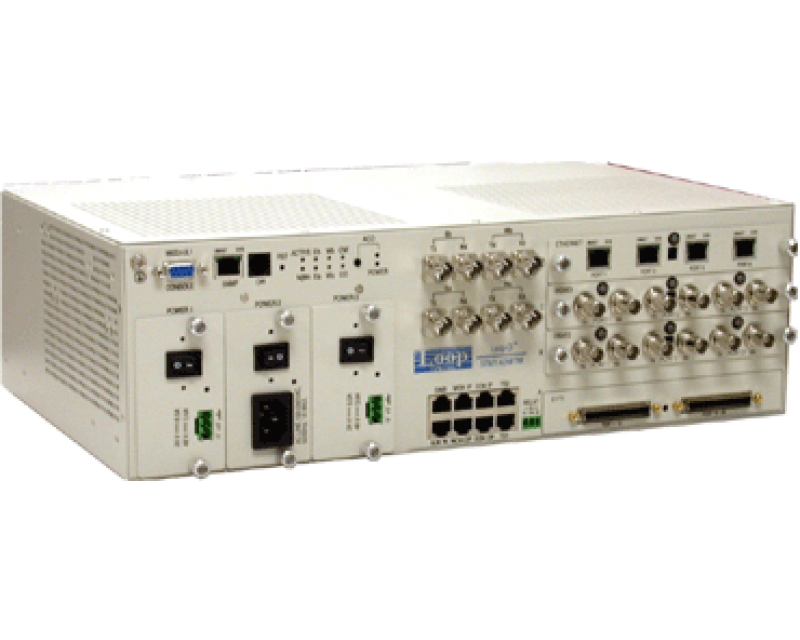

For 3U shelf





With up to 4 aggregate optical/electrical STM-1 interfaces, the Loop-ADM can offer the service provider a versatile protection scheme including SNCP-I and MSP (1+1) protection for both ring and linear Network topology.



All interfaces are fully compliant with the relevant ETSI standards and ITU recommendations. The Loop-ADM provides powerful Operation, Administration, Maintenance and Provisioning (OAM&P) functionality, including fault management, performance monitoring, configuration management, and network security management. Through a console port, LAN port, and a DCC channel, the OAM&P can be used both locally and remotely via SNMP or menu-driven interfaces.



The Loop-ADM provides a complete set of operation interfaces that are consistent with the Telecommunication Management Network (TMN) concept (ITU Recommendation M.30, G.784) for SDH Network Element/ Operations System (NE/OS), NE/NE, and NE/Craft communications. Users can easily operate the Loop-ADM locally or remotely for centralized management.
